HOW TO CHANGE THE FUSES IN A SPORTDOG® IN-GROUND FENCE™ WALL TRANSMITTER

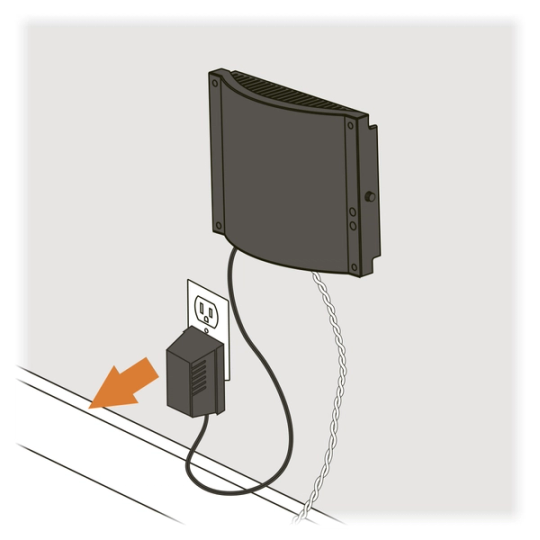

Unplug the power adaptor from the outlet.

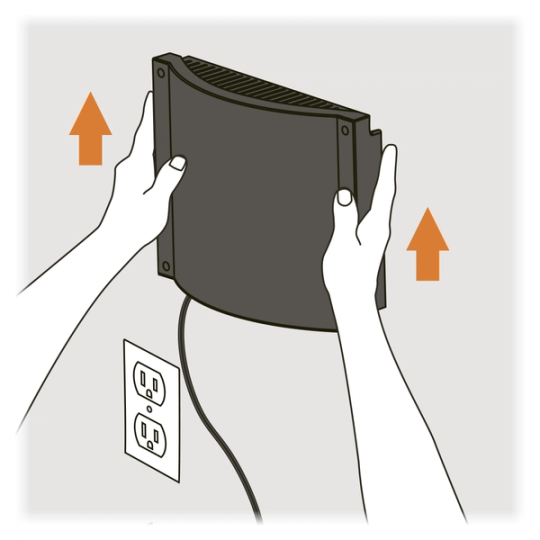

Remove the transmitter from the wall by sliding it up and off the mounting screws.

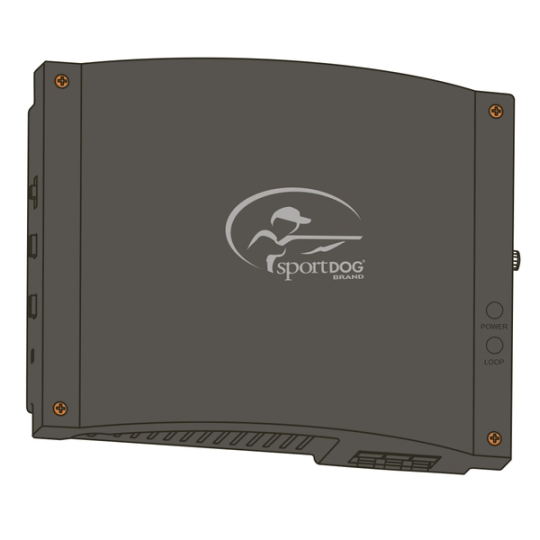

Remove the front cover of the transmitter by unscrewing the screws located in each corner using a Phillips-head screwdriver.
Look at your fuses in the bottom left corner of the transmitter.

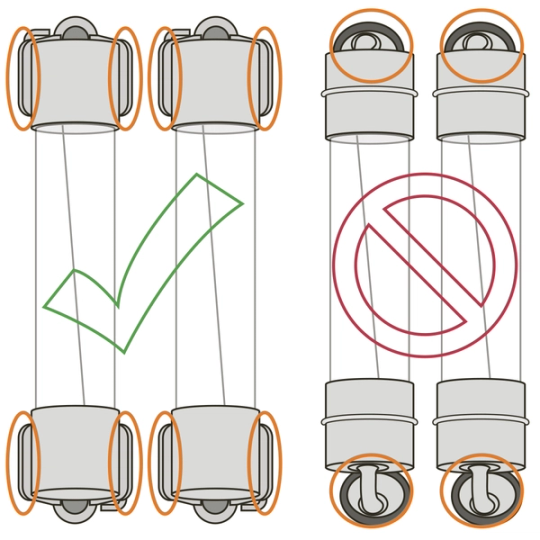

If they are replaceable, they will be held in with brackets.
If they are non-replaceable, they will be soldered into the unit.

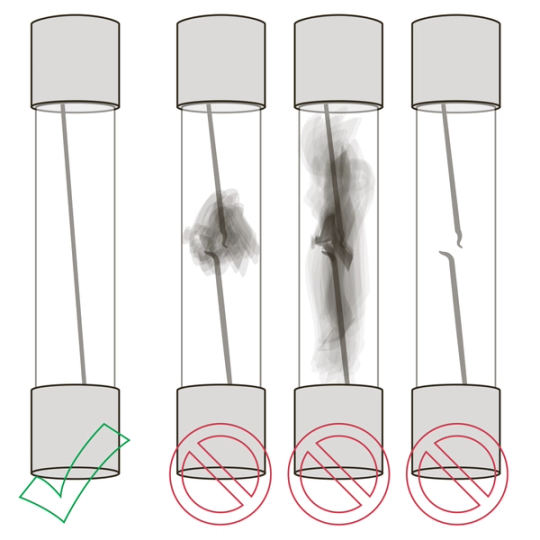

Check the fuse.
If the wire that runs through the middle appears burned or broken, replace the fuse with a type 1A 250V fuse.
If your fuses are not replaceable, contact Customer Care.

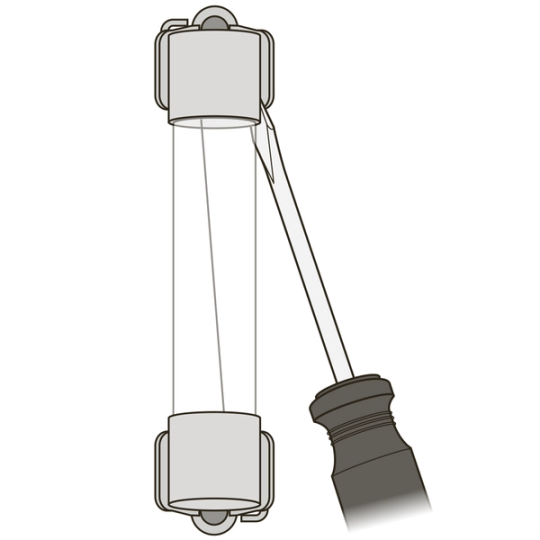

Remove a replaceable fuse using a small flat head screwdriver. Be sure to slide the flat head under the metal portion of the fuse and not the glass.
Push the new fuse into the bracket and replace the cover and screws.
Test your wall transmitter for power by plugging the power cord in and ensure the power switch is on.
