HOW TO CHARGE MY SPORTDOG® YARDTRAINER 100 OR 100S
YardTrainer Series :: How To Charge the YT-100 and YT-100S
KNOW WHEN TO CHARGE
- Your remote transmitter will indicate a low battery with a red light when any button on the remote is pressed.
- Your collar will indicate a low battery with a red light flashing once every 4-5 seconds.
Please note that your collar will have a solid red light anytime you signal a static stimulation from your remote. This is normal and should not be confused with the low battery indicator.
Align the Charging Cradle with the charging contacts on the collar as shown in the image.
Push down on the Charging Cradle until it snaps into place.

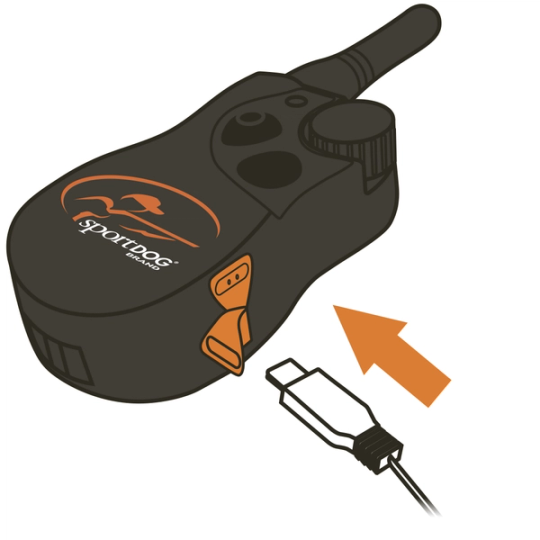

Lift the rubber cover on the remote transmitter.
Make sure to line up the notch on the charger with the ridge in the charging port and plug the charger into the remote.
Plug the USB charger end into a power source.
The Indicator Light will be solid green when charging and takes about 2 hours to complete.
When the remote or collar is finished charging the Indicator Light will flash green.
Power the collar on to continue normal operation.
GET THE MOST OUT OF YOUR BATTERY
- Turn your collar off between charges to preserve your battery.
- Charge your units once a month if you need to store them for long periods of time.
- Only charge the remote transmitter and collar when you see the low battery indicator. Overcharging the remote transmitter or collar can shorten the battery life.
